Megapixel Vari-Focal Lenses (IR Mega):

- Ultra-high resolution of 5-10 megapixel;

- IR correction for Day and Night surveillance;

- DC Auto/manual IRIS option;

- Glass elements and metal housing

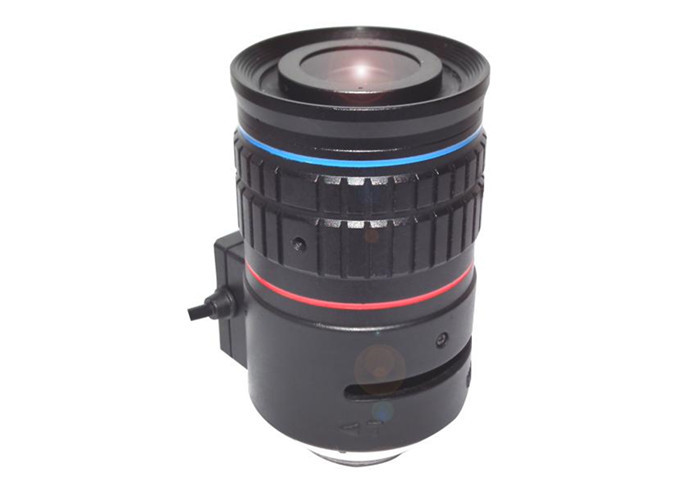

1/1.8" 11-40mm F1.8 8Megapixel DC AUTO IRIS C Mount IR Vari-focal Lens for 1/1.8"~1/3" sensors, HIKVISION HV1140D-8MPIR replacement lens

Model 1181140DM-C-MP(C)
IMAGE FORMAT 1/1.8"
FOCAL LENGTH 11~40mm
F.O.V (D*H*V) 48°*38°*28° ~ 14°*12°*8°
RESOLUTION 8MP
OPTICAL DISTORTION -10.21~-0.17%(1/1.8”)
APERTURE F1.8
MOUNT C
IRIS DC AUTO
AOOM Manual
FOCUS Manual
M.O.D. 0.3m

Flange B.F.L. 17.526mm
B.F.L. 7.04mm
M.B.F. 6.56mm
DIMENSION φ49×54.5×92.7mm
IR COLLECTION YES
OPERATING TEMPERATURE -20℃～+60℃

We are professional supplier of CCTV & Video Lenses in China. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, ...

These products have countless applications in the security, medical, military, environment monitoring, aerospace, and other high-tech industries, and they are also used in medical imaging equipment, mini projectors, and optical, laser and infrared instruments.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
